SKYFLOOR BS – COMBINES FIRE RESISTANT GLAZING AND GLASS FLOOR

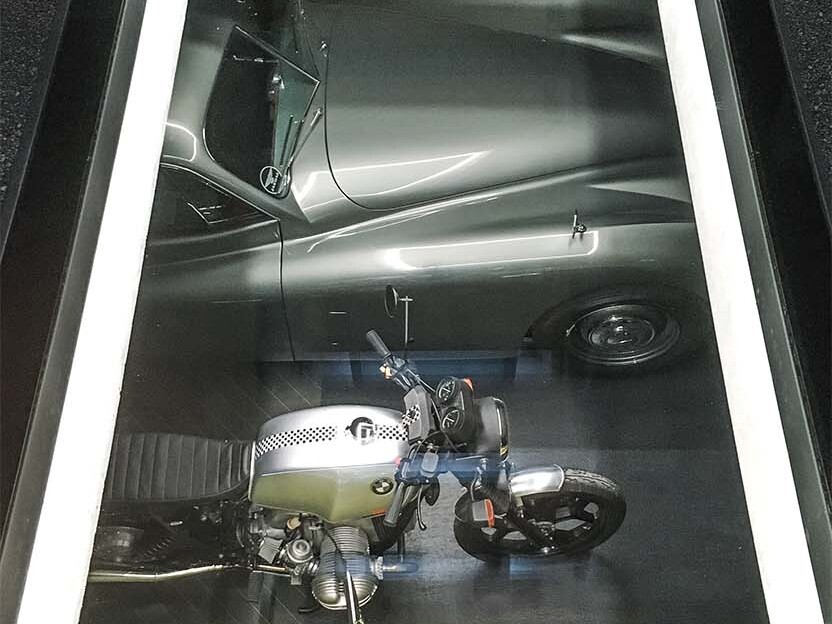

Whether in public buildings or for glazing private areas. The Taghell fire resistant glazing makes it possible to have a view of surfaces, which differ in their fire resistance class. Staircases, garages or areas within public buildings are opened up using the specially developed walk-on fire protection glazing.

SKYFLOOR BS – the walk-on fire resistant glazing from Taghell impresses with a clear design shape and represents a complete system of modular glass skylight in the fire resistance class F30 or F90 of your choice. This is available for insulated premises or as uninsulated fire-resistant glazing.

The well proven flush and closed system requires, depending on the country, approval in each individual case, which is given at the written request of the client or his representative.

  • Load-bearing or continually walked on
  • Fire retardant (REI30) to fire resistant (REI90)
  • Glass frame complete system
  • Fast and easy to install
  • No sills
  • Custom shapes, colour and sizes
  • Custom design of the inner frame
  • Can be integrated into existing and new buildings
  • Durable system

FIRE RESISTANCE

With regard to their fire behaviour, building materials are divided into the following groups: Building materials that burn themselves, building materials that do not allow fire gases to pass through but do not prevent the heat radiation from igniting objects behind them, and building materials that also retain the heat radiation for a certain period of time. The fire resistance duration is specified in minutes (steps: 15, 30, 60, 120 to 360 minutes); the building material is divided into different fire resistance classes accordingly.
Room-sealing and thermally insulating glazing has the property of resisting the stress of a fire attacking only one side in such a way that fire and smoke gas penetration is prevented and that no significant transfer of heat takes place. High-quality fire-resistant glass that does not heat up by more than 140 K on average on the side facing away from the fire belongs to classes F 30 – F 120 (DIN 13501: EI 30 – EI 120) according to DIN 4102.

CONSENT IN A PARTICULAR CASE
The installation of a walk-on skyfloor requires approval on a case-by-case basis. This is issued by the supreme building supervisory authority of the responsible federal state upon written application by the builder or his representative and is limited to the respective building project.

FORM

The size of the SKYFLOOR BS is variable and is based on various parameters of the planned construction project. Whether for new buildings or for fitting into existing buildings – the walk-on fire resistant glazing from Taghell can be manufactured according to the required dimensions within the range of minimum to maximum sizes listed.

THE SQUARE

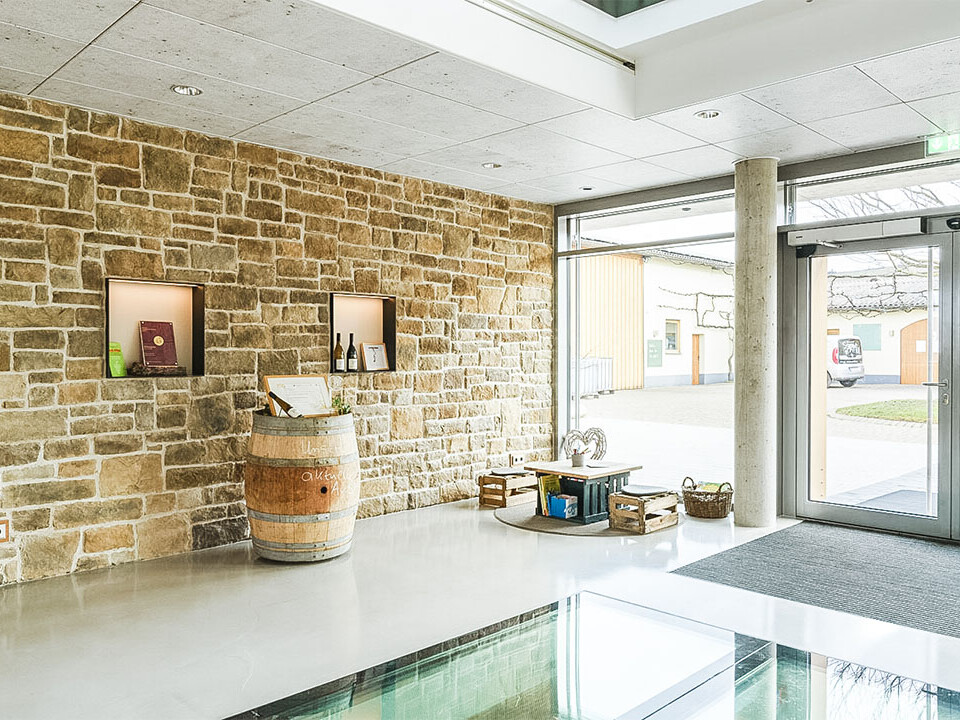

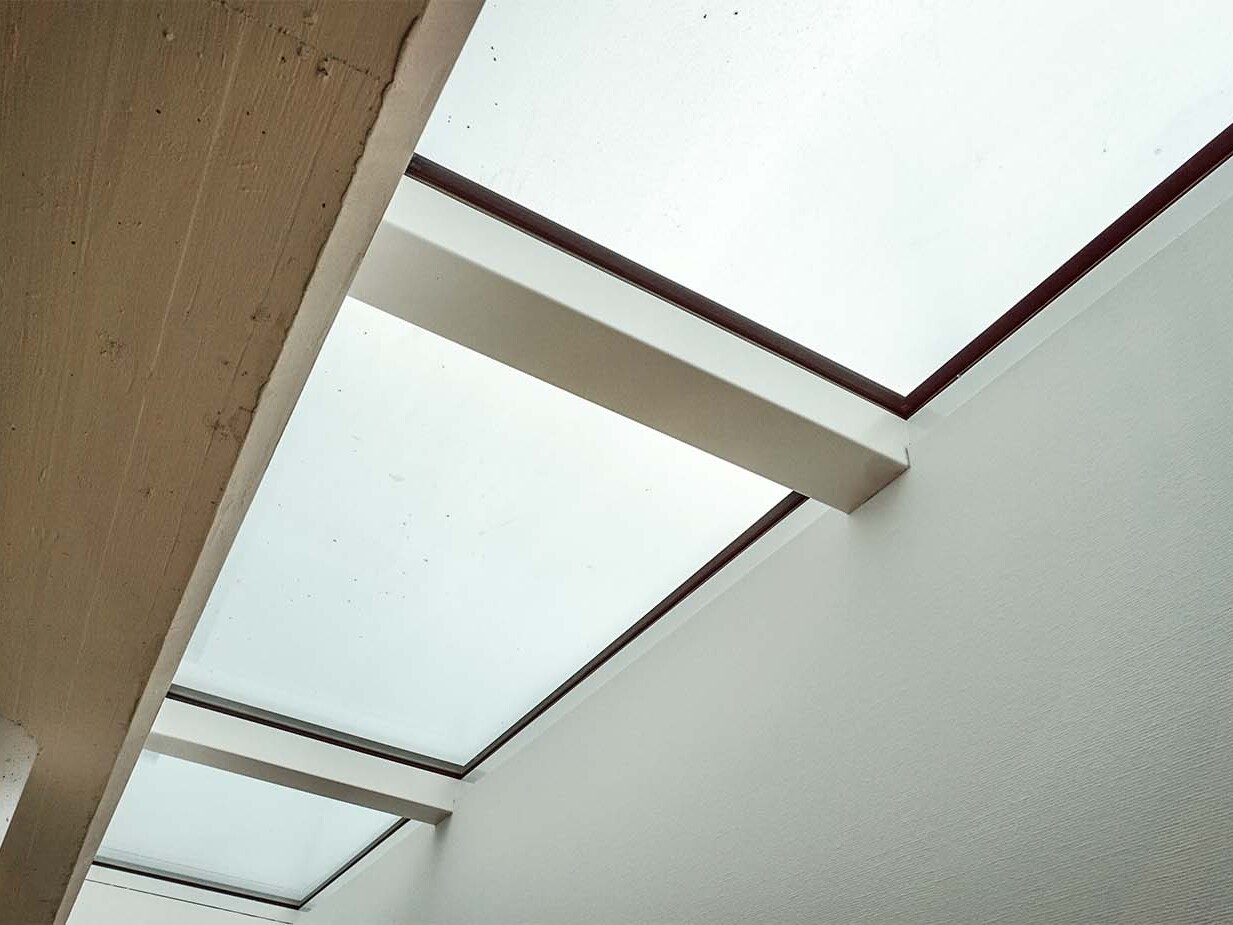

In the form of strips of light in different shapes and sizes the rectangular skylights or glass floors from Taghell create accented large surfaces. In otherwise only partially naturally illuminated living spaces, architectural design possibilities and light sources are expanded by access to barrier free floor glazing. Depending on the time of day and weather conditions, you will experience a range of lighting effects, all framed by the clear-cut lines of the Square.

THE CIRCLE

Like spotlights with variable diameters, the Circle fits organically into its surroundings. Contemporary room concepts are supplemented with creative control of the daylight coming in, refining your space with shafts of light that shift throughout the day. Whether used as a single spotlight or in multiples to flood your space, the barrier-free Circle skylight offers smooth lines to create a contemplative mood.

THE RECTANGLE

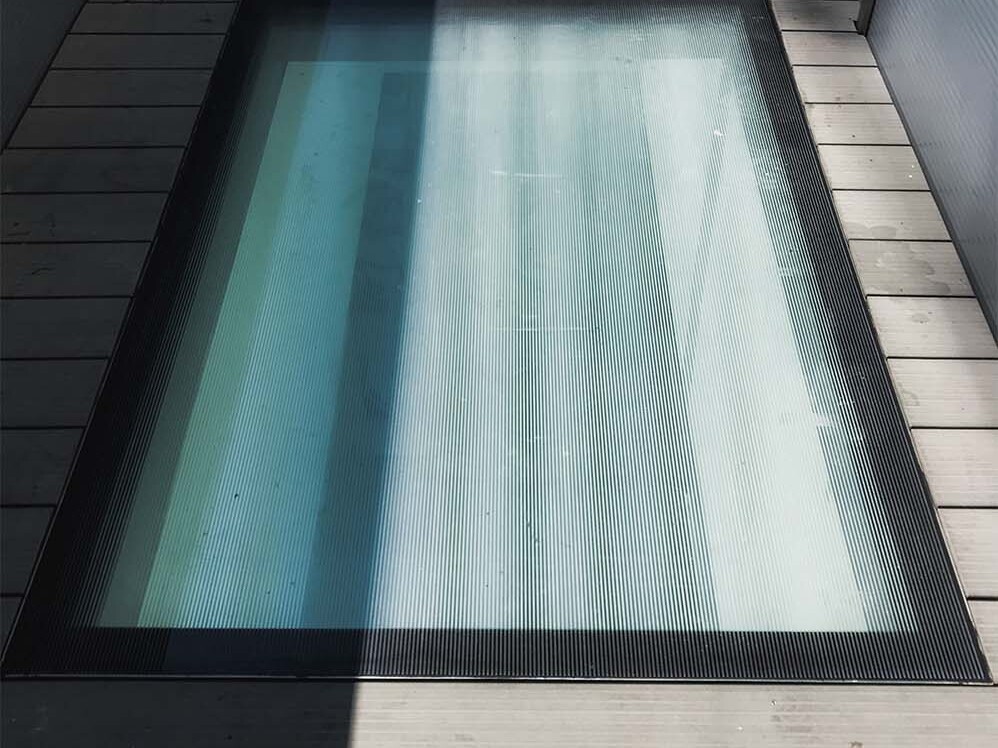

In the form of strips of light in different shapes and sizes the rectangular skylights or glass floors from Taghell create accented large surfaces. Repeatedly, placed next to each other or individually as a highlight of a room concept – the correct positioning creates a series of effects; the geometry of a room can be deliberately influenced. By means of the flush installation, barrier free skylights in terraces, roof gardens, lawns or staircases are created.

THE INDIVIDUAL

Our custom made special solutions for walk-on floor glazing leave nothing to be desired with regard to shape, size and load bearing capacity. There are no more limits when it comes to choosing materials or colours than there are to designing the shape or individual arrangement of panes in your skylight; even how it connects to your façade. We work closely with you to create the perfect skylight for your situation.

ADD ONS

Are you looking for a walk-on fire resistant glazing that meets all your requirements? Custom solutions can meet almost any need or wish in terms of shape, size, and load capacity. Whether limited transparency, fire-retardant or resistant, we would be happy to create an individual solution for optimum floor glazing.

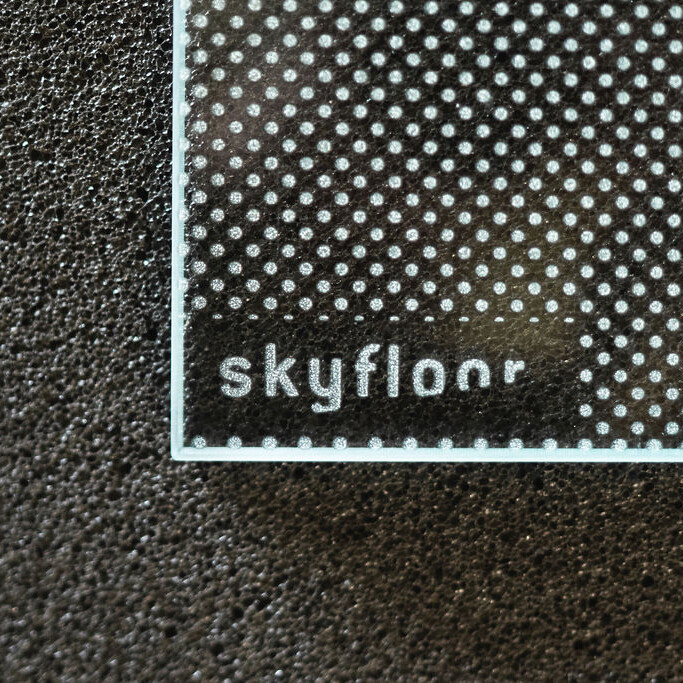

ANTI-SLIP POINTS

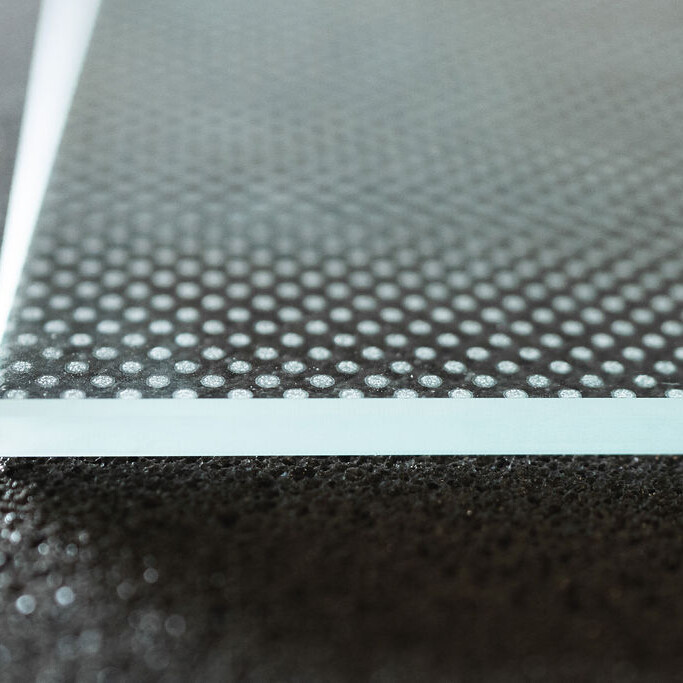

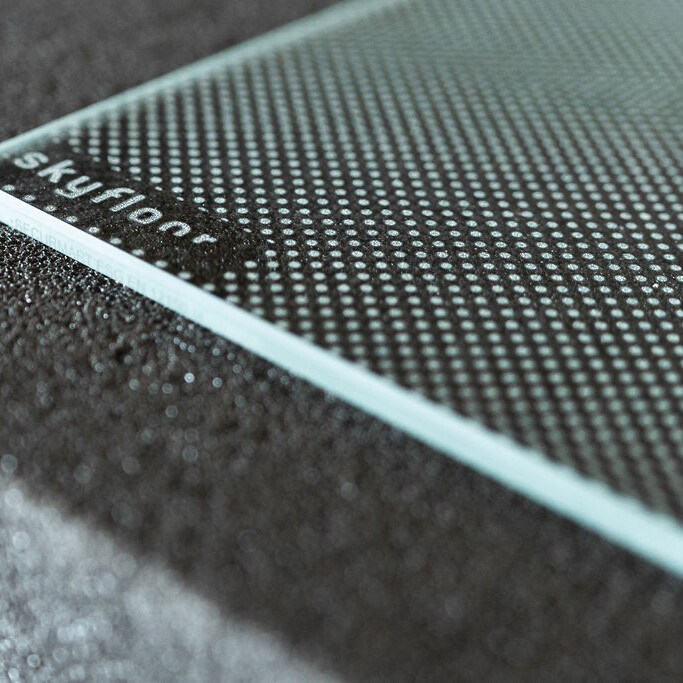

Slip-resistant glass surface fine dot format for good slip resistance (R9) and optimum light transmission

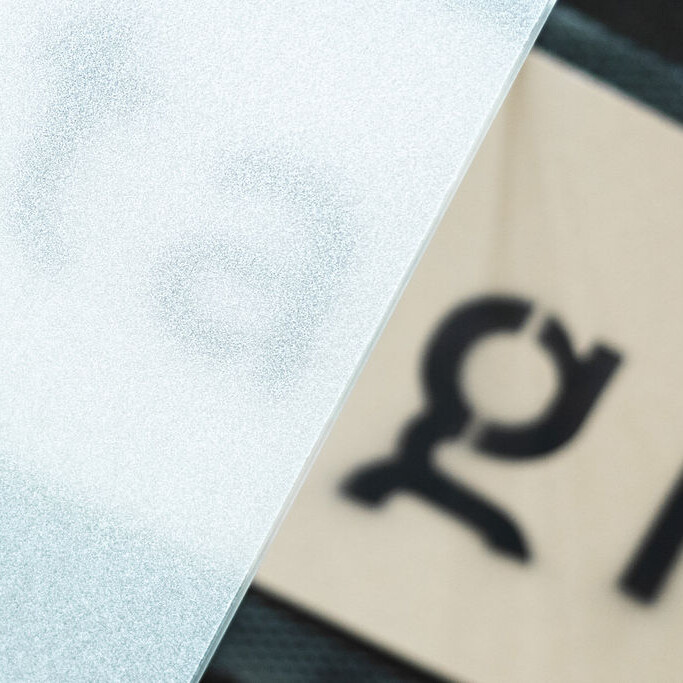

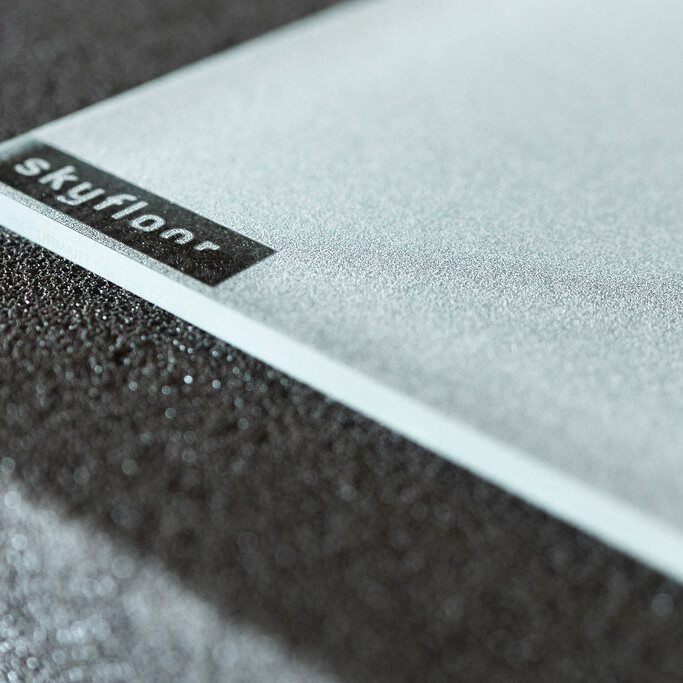

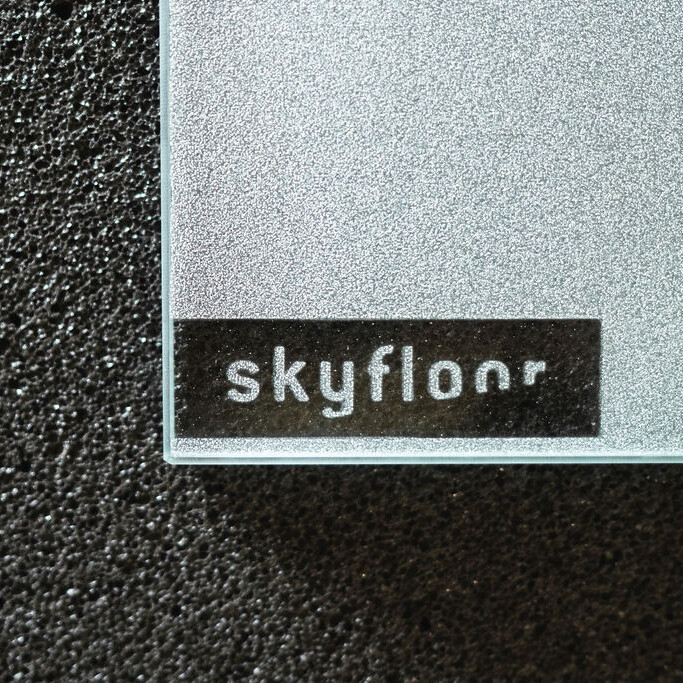

SLIP RESISTANCE FULL SURFACE

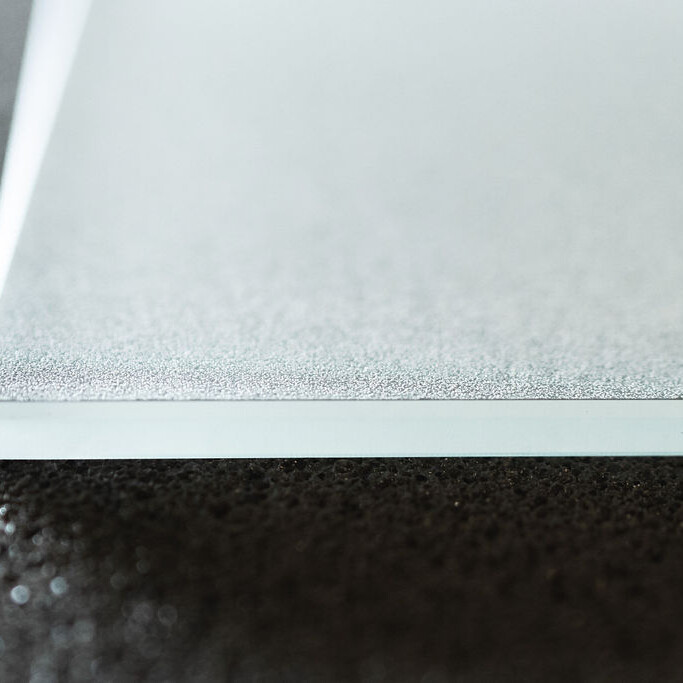

Full-surface anti-slip glass surface for best slip resistance (R13). Prevents the view inside and the view outside.

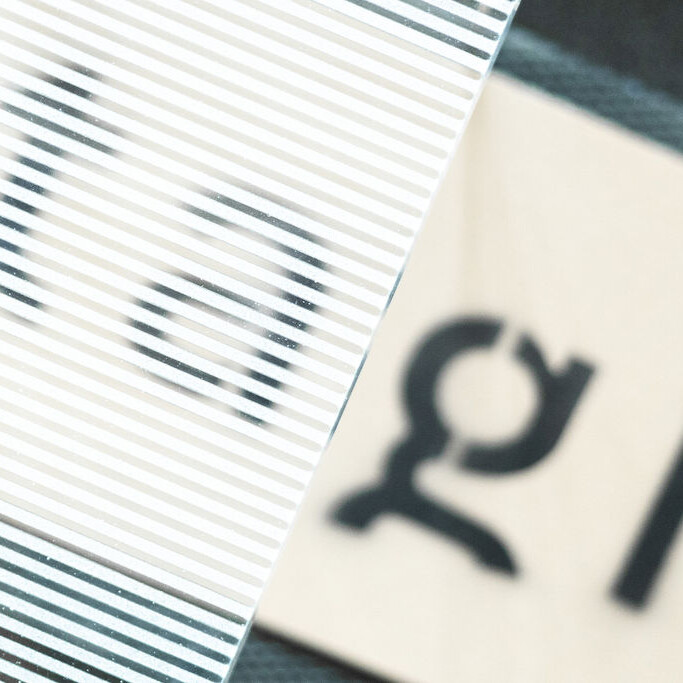

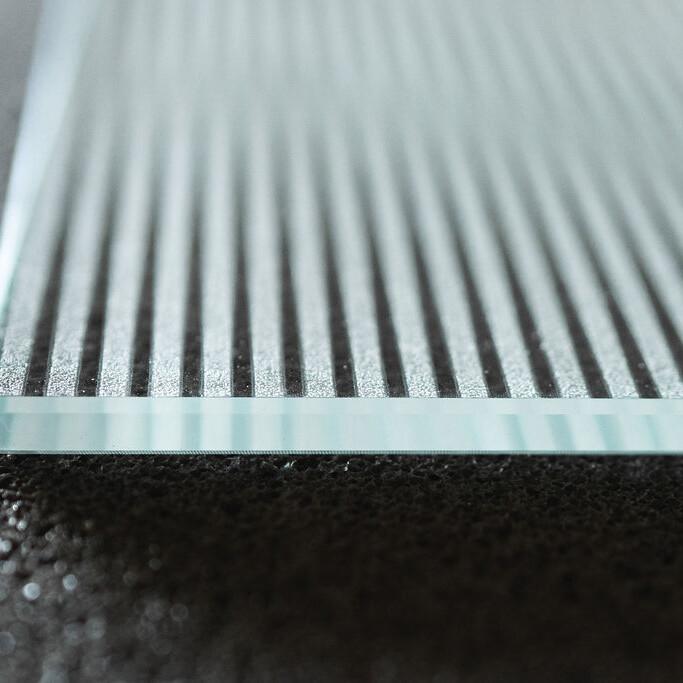

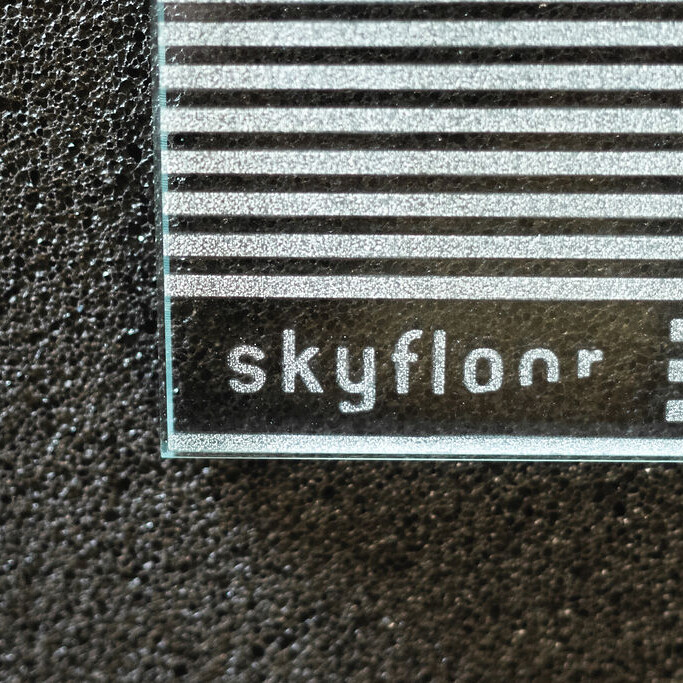

SLIP RESISTANCE STRIPES

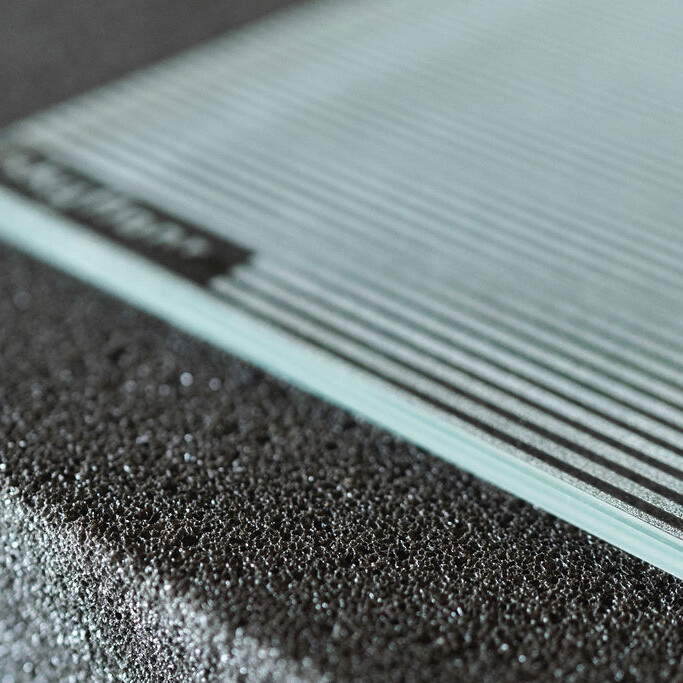

Slip-resistant glass surface in strip format (3mm/50%) for best slip resistance (R10).

WALKABLE

Glazing accessible according to DIN 18008-5 (D), SIA (CH) and ÖNORM B 3710 (AT) up to a maximum useful load of 5kN/sqm

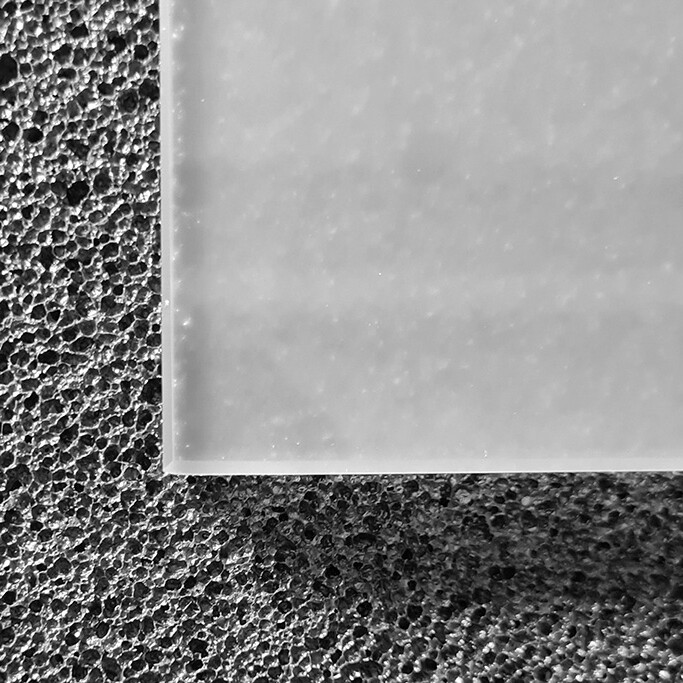

PRIVACY GLAZING

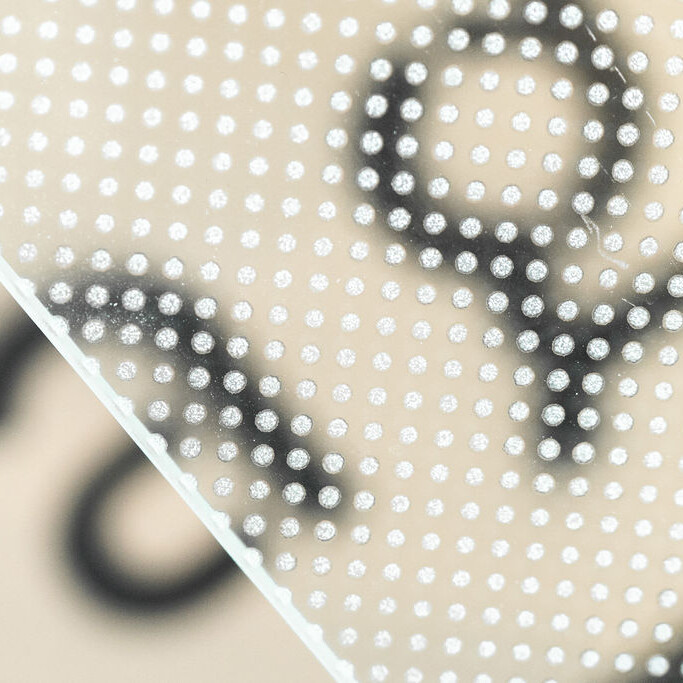

Prevents unwanted view inwards and the view outwards

INNER FRAME VARIABLE

High-quality finish of the inner frame in matt brushed stainless steel, powder-coated according to Ral/dB

Size and prices Skyfloor BS

The size of the SKYFLOOR BS is variable and is based on various parameters of the planned construction project. Whether for new buildings or for fitting into existing buildings – the walk-on floor glazing from Taghell can be manufactured according to the required dimensions within the range of minimum to maximum sizes listed.

High quality and custom made, walk-on fire resistant glazing at graduated prices. The basic version of the floor glazing can be selected according to shape and size. Depending on the requirements, the supplements described under “Add-Ons” can be added.

All prices are net, ex factory

REFERENCE SIZES

up to 80 x 80cm from 4700€
up to 100 x 100cm from 5300€
up to 120 x 120cm from 7500€
up to 140 x 140cm from 10400€

CUSTOM SIZES AT THE SAME PRICE AS THE REFERENCE SIZE

Example: 78 x 78cm from 4700€

MAXIMUM SIZE PER GLASS

140CM X 140CM

Larger dimensions are possible by dividing the glass as desired

REFERENCE SIZES

up to 100 x 60cm from 4700€
up to 120 x 80cm from 5300€
up to 140 x 100cm from 7500€
up to 200 x 100cm from 10400€
up to 200 x 140cm from 14900€

CUSTOM SIZES AT THE SAME PRICE AS THE REFERENCE SIZE

Example: 100 x 51cm from 4700€

MAXIMUM SIZE PER GLASS

200CM X 140CM

Larger dimensions are possible by dividing the glass as desired

REFERENCE SIZES

up to 80cm from 7400€
up to 100cm from 10800€
up to 120cm from 15900€
up to 140cm from 20100€

CUSTOM SIZES AT THE SAME PRICE AS THE REFERENCE SIZE

Example: Diameter 78cm ab 3900€

MAXIMUM SIZE PER GLASS

140CM

Larger dimensions are possible by dividing the glass as desired

PRICE INQUIRY – SKYFLOOR BS

If you need a size outside these parameters, contact us to configure your custom SKYFLOOR BS.

INSTALLATION

The installation of our Skyfloor is simple and time-saving. It can be carried out by your trusted roof specialist or by installation specialists from our Taghell team. We are pleased to support external fitters for successful installation of the walkable skylights. You will find notes and recommendations in our installation instructions.
Please contact us for detailed assembly instructions.

Made in Germany – delivered and installed in Europe. Taghell plans, supplies and installs walkable skylights and floor glazing in a wide range of European countries.
